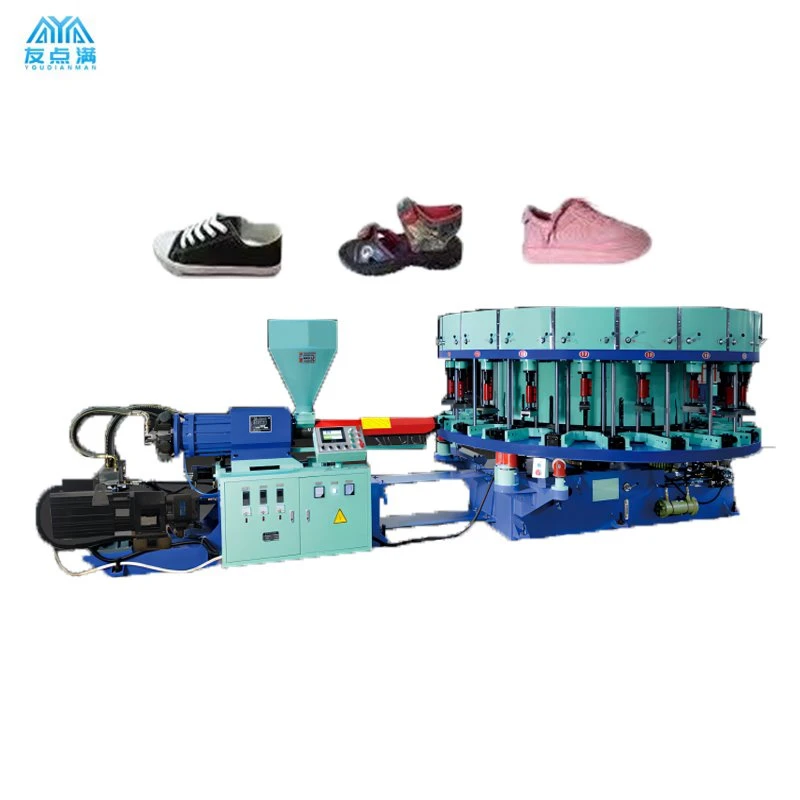

20 Stations PVC Injection Molding Machine
Model No:5120-YY
MOQ:1 set
Work stations：20
Condition:Customization
Product Prices:40000USD
- Product Introduction
Product Overview
Model No:5120-YY
MOQ:1 set
Work stations：20
Condition:Customization
Product Prices:40000USD
Product Introduction
The 20 stations PVC injection molding machine can use materials such as TPR, TR, and PVC,which allows for versatility in the types of shoes that can be produced.The smooth operation and versatility of the round table shoe sole shaping machine make it a valuable tool for shoe manufacturers looking to create high-quality products efficiently.
Product Detail
|
Raw material |
TPR TR PVC |
|
Number of stations |
20 Stations |
|
Screw Diameter |
65mm/75mm |
|
Screw rotating speed |
0-200rpm |
|
Screw length and diameter ratio |
22：1 |
|
Max injection capacity |
650/580cm³ |
|
Clamp mould style |
Scissors |
|
Shoe last height |
210mm-260mm |
|
Mould frame dimensions(L*W*H) |
340mm*180mm*60mm |
|
Total power |
49.5kw |
|
Motor power |
31.5kw |
|
Machine dimension(L*W*H) |
8160*5700*1900 |
|
Machine weight |
12200kg |
|
Injection pressure |
5MPa |
|
Disc pressure |
3MPa |
Product Features
1、PLC controlled, pre-plasticized bu hydraulic motor, driven by full hydraulic pressure and cycled automatically.
2、High plastifying capacity, the plastifying temperature can be controlled automatically by pre-selection
3、It adopts 16, 20, 24 points measuring and the injection volume can be chosen according to requirement of the mould at each working position
4、The machine is equipped with two time pressure injection system.
5、The round table indexes smoothly and its movement can easily be adjusted.
6、There are many working positions, the time for shaping is long and it will be easy to guarantee the shaping quality of shoes soles.
Video Description
Factory
FAQ
Q1: How much is the machine ?
A: Please tell me the product requirements you need.The price varies with the machine configuration.Our machine can be customized.
Q2: Are you trading company or manufacturer?
A: We have a factory.You are most welcomed to visit us for any requirement.
Q3: What's the delivery time?
A: Around 30-60 days after we receiving your deposit
Q4: What kind of payment method?
A: T/T or L/C
Q5: What materials can the machine use？
A: TPR 、TR、 PVC
Q6: How many stations does the machine have？
A: 16、20、24
