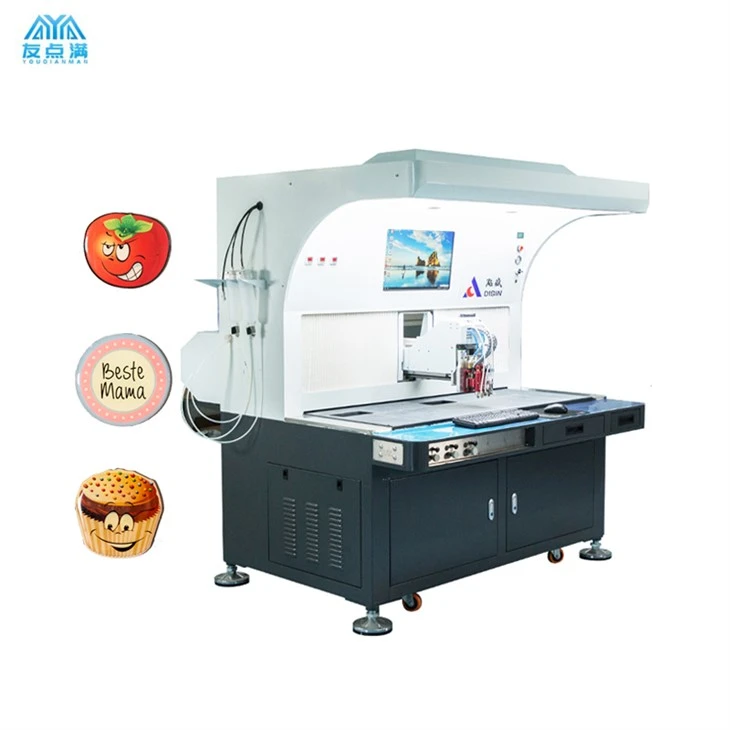

Industrial Glue Dispenser
Model No:DS-CCD-PP-6
Warranty:1 year
MOQ:1 set
Product Prices: 18880 USD
- Product Introduction
Product Overview
Model No:DS-CCD-PP-6
Warranty:1 year
MOQ:1 set
Product Prices: 18880 USD
Product Introduction
High-Resolution Visual Positioning
Equipped with two 2000W pixel visual positioning cameras, the machine ensures accurate alignment and high-quality dispensing, enhancing application precision.
Multi-Axis Movement
The machine features X, Y, and Z linear axes, enabling movement in left-right, front-back, and up-down directions. This versatility is essential for various dispensing tasks.
Precision Dispensing
Capable of performing tasks such as points, lines, arcs, ellipses, and squares with an accuracy of ±0.01 mm, ensuring high-quality and consistent applications.
Versatile Application
While primarily designed for flat dispensing tasks, the machine can also handle spiral trajectories in space, though these applications are less common.
Product Detail
|
Painting Way |
Spray |
|
Painting Speed |
200Spot/sec |
|
Work Table Size |
300mmx400mmx2/400mmx500mmx2 |
|
XYZ Spindle Work Precision |
±0.01mm |
|
Drive Mode |
Servo + Screw rod |
|
Power Supply |
AC220V/50Hz |
|
Machine Total Weight |
750kg/850kg |
|
Power |
1.5kw |
Product Features
The industrial glue dispenser is one of the most common types of industrial automation equipment. It consists of three linear axes, X, Y and Z, and can move in the left, right, front and back, and up and down directions. It is generally used for planar dispensing tasks such as points, lines, arcs, ellipses and squares; of course, it can also be used for spiral trajectories in space, but these applications are less common.
Product Packing
Our Factory
I. Factory Overview
Factory was established in 2007 year and has been developing steadily for 17 years. It is a manufacturing enterprise with considerable influence in the industry.
II. Qualifications and Honors
We adhere to strict requirements for quality and standards, and have been awarded more than 30 certificates and honors covering areas such as product quality and technological innovation, which fully demonstrate the excellent strength of the factory.
III. Future Prospects
Based on the 17-year development foundation, we will continue to uphold quality, be driven by innovation, expand the market, and bring more high-quality products and services to our customers.
Everyone is welcomed to pay attention to YDM machine and join hands to create a better future!
FAQ
Q1: What is your company's payment method?
A: TT/LC 30% deposit, delivery after payment of the balance
Q2:How many working colors does the machine have?
A:1/2/3/4/5/6 colors
Q3:How long is the warranty period of your machine?
A:One year
